Available Finish Colors

Black


Unfinished


White

GT-801M™

Description[±]

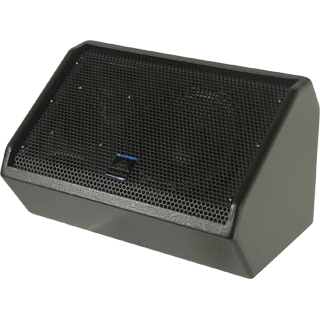

The GAD GT-801M™ is a two-way, bass reflex, multi-angle loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-801M™ is available with several installation choices including 2 x 2, 3/8" - 16 threaded mounting points.

Application[±]

The GT-801M™ is designed for near field applications where a smooth, dynamic range is needed. The GT-801M™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-801M™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	150 Watts
(Program):	300 Watts
(Peak to Peak):	600 Watts

Frequency Response:	80 Hz - 19.5 kHz

Sensitivity (1W @ 1M):	97 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	8" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver

Crossover Frequency:	2.2 kHz

Enclosure Type:	Multi-Angle

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 10.75" W - 15.50" D - 9.75"
(millimeters)	H - 273.05 W - 393.70 D - 247.65

Product Weight:	17.0 Lbs / 7.7 Kgs

Shipping Dimensions:
(inches)	H -18.63" W -25.38" D -13.50"
(millimeters)	H -473.20 W -644.65 D -342.90

Shipping Weight:	40.0 Lbs / 18.0 Kgs

Available Finish Configurations [±]

	GT-801M-H
	With handles no pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
